Action Mode

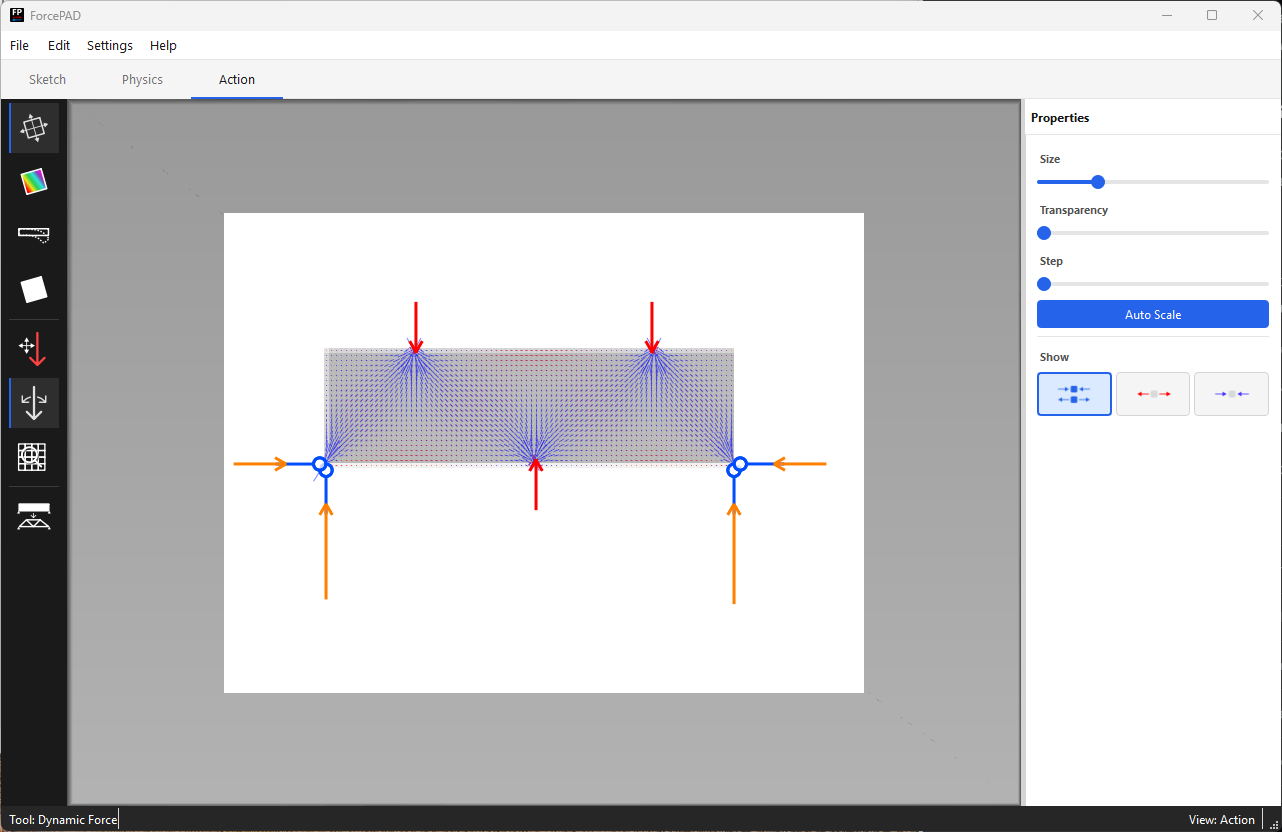

Action mode displays the results of the finite element analysis and allows interactive exploration of the structure's behaviour. Switch to this mode using the Action tab below the main menu bar.
The FEM calculation runs automatically when action mode is first entered. Results are updated in real-time when forces are moved or rotated.
Visualization modes
The left toolbar in action mode selects which result quantity is displayed. The right pane updates to show the relevant display controls.
Principal stresses
Principal stress visualization is the default when action mode is activated. Select the principal stress tool in the left toolbar.
Result arrows are drawn across the structure:
- Red arrows — tensile stresses (pulling apart)
- Blue arrows — compressive stresses (pushing together)
The right toolbar provides the following controls:
| Control | Effect |
|---|---|
| Size roller | Scale the size of the stress arrows |
| Transp roller | Transparency of the arrows (reduce to better see the structure underneath) |
| Step roller | Number of grid steps between arrows — increasing reduces arrow density |
| AutoScale button | Automatically recalculate arrow sizes each time action mode is entered |
| Tensile/compressive toggles | Show only tensile, only compressive, or both stress arrows |
The example below shows the effect of increasing the step size to reduce arrow density:
Von Mises stress
Select the second button in the left toolbar to display the von Mises stress field as a color map.
Two color maps are available:
- Rainbow (default) — low stresses shown in blue, high stresses in red.
- Hot — low stresses shown in dark red, high stresses in yellow.

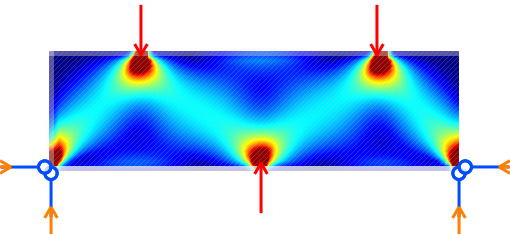

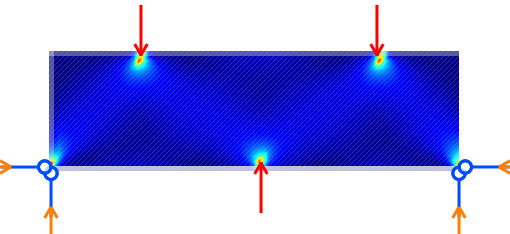

A slider controls the stress level that maps to the maximum color, allowing you to compress or expand the color range. For example, reducing the slider value makes it easier to see low-stress regions in detail. See the example below:
Displacement
Select the displacement tool in the left toolbar to visualize structural deformations.

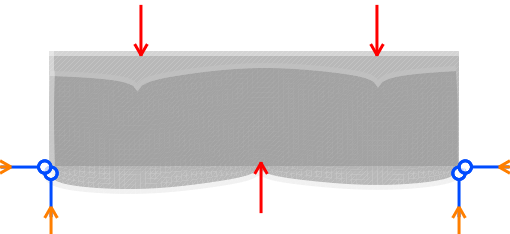

A slider in the right toolbar scales the magnitude of the displayed displacements. The following example shows the effect of increasing the displacement scale:
Interacting with forces in real-time
Action mode allows forces to be rotated and moved while the visualization updates immediately.
Rotating forces

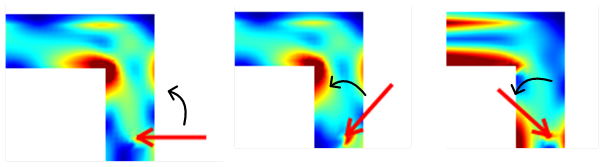

When action mode is first entered, ForcePAD is in force rotation mode. Click on the tip of a force arrow and drag with the left mouse button to rotate the force, see figure below. The visualization updates in real-time.
Moving forces
Select the force movement tool button in the left toolbar. Click on a force tip and drag to relocate the force application point. Results update continuously.
Magnifying the view

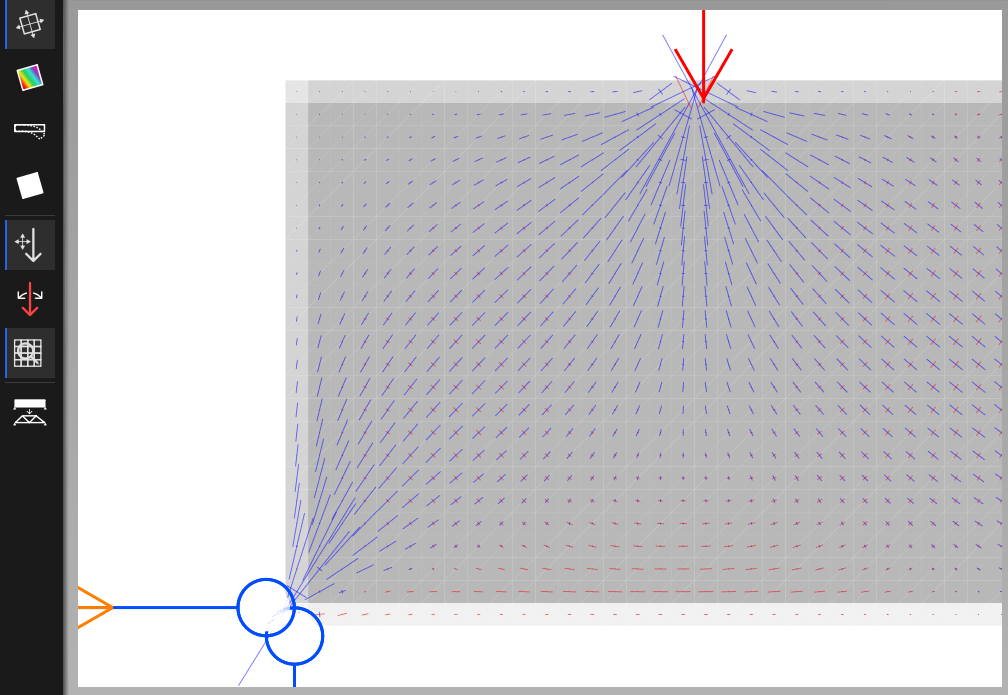

To examine visualizations in detail, activate the zoom / magnify button in the left toolbar. The view is immediately magnified. Adjust the zoom level with the scroll wheel or the Page Up / Page Down keys. Drag the mouse to pan the magnified view. The figure below shows the magnify tool in action:
Topology optimisation
ForcePAD includes a topology optimizer (Sigmund filter) that derives an efficient structural shape from the current design domain, forces, and constraints.
To run the optimizer click on the optimise tool button in the left toolbar.

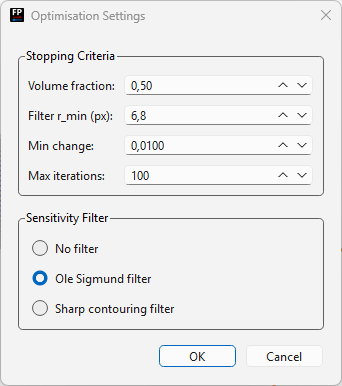

A dialog appears where you can adjust the optimization parameters (volume fraction, filter radius, penalty factor).
Click OK to start the optimization process. The optimizer runs iteratively, updating the displayed shape at each step. You can stop the optimization early by clicking the red Stop button in the status bar of the window.
The finished optimization is shown in the example below:
